Low Volatility LSR

Low Volatility LSR

Model No.
LIM39XXAD/BD

Product Description

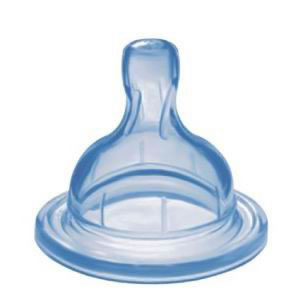

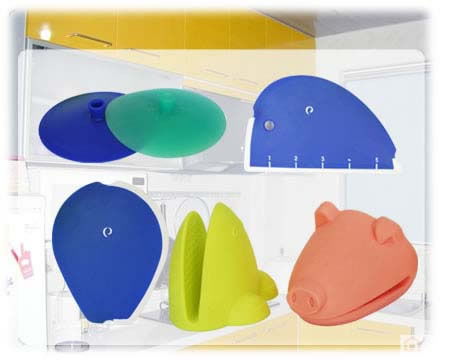

This product is a bi-component platinum catalyzed liquid volatility liquid silicone rubber. The most significant characteristic of this LSR is low volatility. It has excellent transparency, good tensile strength, anti-yellowing property, heat resistance property, etc. Our low volatility LSR is manufactured in strict compliance with USA FDA CFR 21.Part.177.2600 and EN14350-2 standards. It is used to produce silicone rubber products for food purposes.

Storage
Store in cool and dry place at a temperature no more than 27℃. The shelf life of our low volatility LSR is 360 days. Once open, please keep sealed.

Usage
Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine. The mold should be pre-heated to 160℃-200℃. The AB mixture will be vulcanized to its rubber-like form in a few seconds.

Packing
The silicone rubber is packed in 20kg or 200kg barrels.

Typical Property

Testing Conditions Properties LIM3956AD/BD LIM3960AD/BD LIM3946AD/BD
Appearance Medium to high transparent Transparent and free of impurity Transparent and free of impurity
1st vulcanization, 140℃×10 minutes Shore A Hardness 49.0 60.0 60.0
Tensile Strength (MPa) 8.0 7.0 7.50
Tear Strength (kN/m) 35.0 35.0 27.0
Elongation at Break (%) 500% 400% 450%
Tensile Set (%) ≤5.0% ≤5.0% ≤8.0%
Linear Shrinkage(%) 1.60-2.50% 1.60-2.50% 1.60-2.50%
2nd vulcanization, 160℃×2 minutes Tc90 (s) 29S 28S 28S
Inflexion (S) 26-30s 26-30s 25-30s
Weightlessness Rate (%) 1.3% 1.3% 1.3%

Note: The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

As an experienced silicone material manufacturer based in China, SQUARE Silicone Materials Company is engaged in the manufacture of silicone gel and silicone for automobile and other products. Certified by ISO9001, these products are exported to England, the United States, Australia, Brazil, Thailand and other countries.

Please feel free to contact us for more information about our silicone material.
