Model No.
LSR1530-35A/B
Product Description
This conductive LSR is a bi-component platinum catalyzed conductive liquid silicone rubber. The mixing ratio of the two components should be 1:1. Our conductive LSR has the following advantages: high tensile stretch, good elastic resilience, small deformation, stable resistance, etc. Due to these properties, it is an ideal inject molding material. It is used to make stress cone semi-conductor for insulator terminals or connectors.
Storage
Keep sealed and store in cool and dark place.
Usage

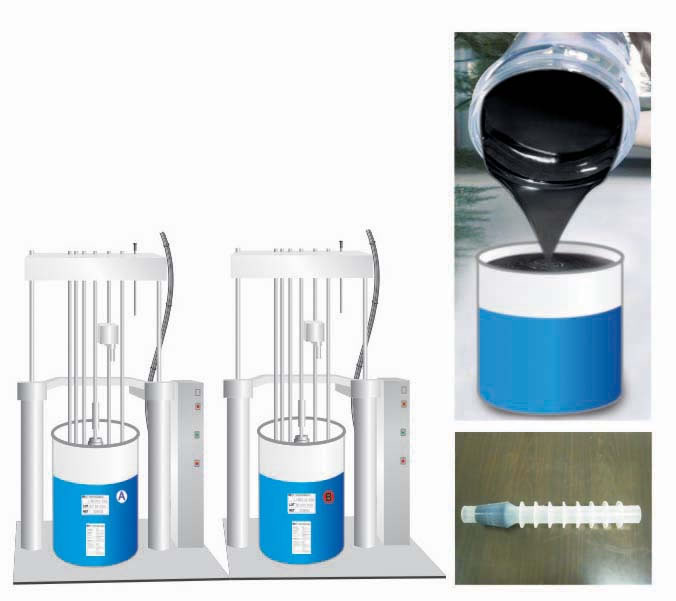

Mix the two components with a ratio of 1:1, then feed the mixture directly into an injection molding machine.
Packing
The conductive LSR is packed in 20kg or 200kg barrels.
Typical Properties
| Product | Test Conditions | Property | Value |
| LSR1530-35A/B | 140℃×10mins | Appearance | Black without Impurity |
| Hardness(A) | 35°A | ||
| Tensile Strength(MPa) | 5.0Mpa | ||
| Elongation at Break(%) | 650% | ||
| Tear Resistance(kN/m) | 25.0 kN/m | ||
| Tension Set(%) | 6.0% | ||
| 140℃×2mins | Tc90(s) | 35-40s | |
| 110℃×5mins | Tc90(s) | 130-140s | |
| Resistance kΩ | 1kΩ | ||
| LSR1530-35A/B | 200℃×2hrs Post Cure | Appearance | Black |
| Hardness(°A) | 40°A | ||
| Tensile Strength(MPa) | 4.5MPa | ||
| Elongation at Break(%) | 450% | ||
| Tear Resistance(kN/m) | 20.0 kN/m | ||
| Tension Set(%) | 4.0% | ||
| Resistance kΩ | 2.5kΩ |
Note:
Molding condition: High pressure curing for 10 minutes at 170℃
GB stands for Chinese national standard
The above technical properties are for reference only. For detailed molding conditions, please contact us directly.
SQUARE Silicon is a China-based manufacturer and distributor of conductive liquid silicon rubbers. Through many years of effort, we are able to supply a series of silicon products, including LSR for insulator, fast cure silicone rubber, silicone gel, just to name a few. Thank you for visiting. If you have any further queries, please feel free to contact us.
