Silicone Rubber for Ignition Automobile Wire and Spark Plug

Home » Products » Silicone for Automobile » Silicone Rubber for Ignition Automobile Wire and Spark Plug
Silicone Rubber for Ignition Automobile Wire and Spark Plug

Model No.
LIM8626-50A/B, LIM8626-60A/B, LIM8626-70A/B, LIM8633-60A/B, SSR8632-60A/B

Product Description

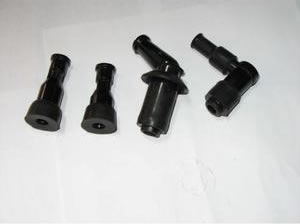

Approved by UL 94 test, this platinum catalyzed bi-component liquid silicone rubber has reached the class level of V0 and V1. Containing PMPS, it can operate normally with extreme high temperature conditions, i.e. over 200℃. Featured with high temperature resistance, this liquid silicone rubber is used to make ignition wires and spark plugs for automobiles.

Storage
Keep sealed and store under cool, dark condition.

Usage
Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine. The mold should be pre-heated to 160℃-200℃. The AB mixture will be vulcanized to its rubber-like form in a few seconds.

Packing
The silicone rubber for ignition automobile wires and spark plugs is packed in 20kg or 200kg barrels.

Typical Property

Properties Test method Unit LIM8626-50A/B LIM8626-60A/B LIM8620-70A/B LIM8633-60A/B SSR8632-60A/B
Shore A hardness D2204 °A 50 60 70 60 60
Tensile strength D412 Mpa 7.5 7.0 7.0 8.0 8.0
Tear strength D624B KN/m 28 25 20 30 30
Elongation at break D412 % 480 400 300 400 500
Linear shrinkage JISK 6301 % 1.9 1.85 1.8 2.0 2.0
Tensile set D412 DIE C % 2.5 2.5 2.5 2.5 2.5
Tc90(s) 27s (160℃ x 2 min)

Note: The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

SQUARE Silicone Materials is a professional silicone rubber for ignition automobile wire and spark plug manufacturer and supplier, based in China. We began our silicone products development and manufacturing business in2002. During the past nine years, we have developed and produced a wide array of silicone materials. If you are interested in silicone for automobiles, please do not hesitate to contact us. We are fully confident that our products can well meet your needs.
