High Voltage Resistant Grade Low Viscosity Liquid Silicone Rubber

Model No.

Product Description
This product is a bi-component, platinum catalyzed, high voltage resistant, low viscosity liquid silicone rubber. Due to the low viscosity property, it can be easily injected and molded. Our liquid silicone rubber features safe operation, high dielectric strength, good tracking resistance, superior surface hydrophobic property, and more. It is suitable for producing outdoor insulators, vacuum breakers, lightning arresters, etc.

Keep sealed in cool and dark place.

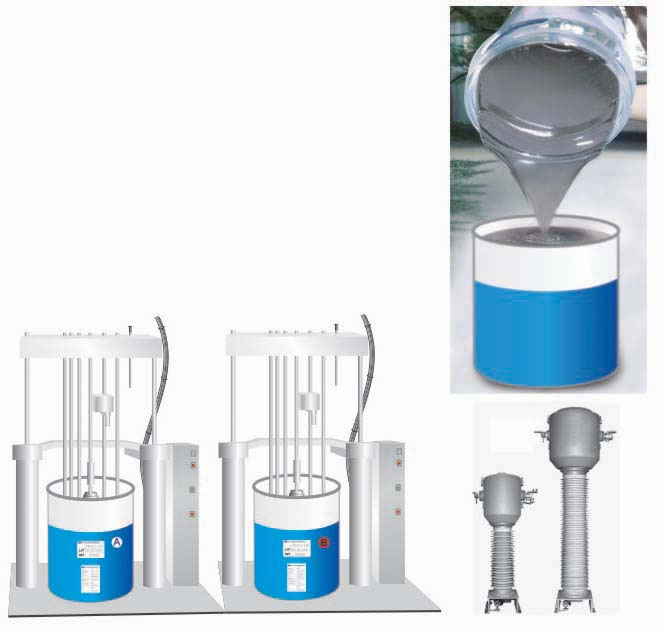

Use a static mixer to mix the two components, A and B, with a ratio of 1:1. Feed the mixture directly into an injection molding machine. The effective operating time of the mixture is seven days in a room temperature of 23℃. Clean up the pipeline if the injection molding machine is not in use for a long period of time.

This liquid silicone rubber is packed in 20kg or 200kg barrels.

Technical Properties

Physical Property
Hardness 36°A
Tensile Strength 5.8MPa
Elongation at Break 380%
Tear Strength 12.5kN/m
Linear Shrinkage 2.3%
Deformation Rate 0.9%
Rebound Property 70
T90 9mins
Viscosity A: 60Pa.s, B: 60Pa.s

Note: The above technical properties are for reference only. For detailed molding conditions, please contact us directly.

Established in 2002, SQUARE Silicone Materials Company is a professional high voltage resistant grade low viscosity liquid silicone rubber manufacturer and supplier, based in China. We have been ISO9000 certified. In addition to high voltage insulator, we provide other silicone materials, such as food grade silicone and silicone rubber for medical purpose, etc. Thank you for visiting our website! If you have any queries, please feel free to contact us.
