Model No.
LIM1500-30A/B,LIM1500-40A/B,LIM1500-60A/B,LIM1500-70A/B
Product Description

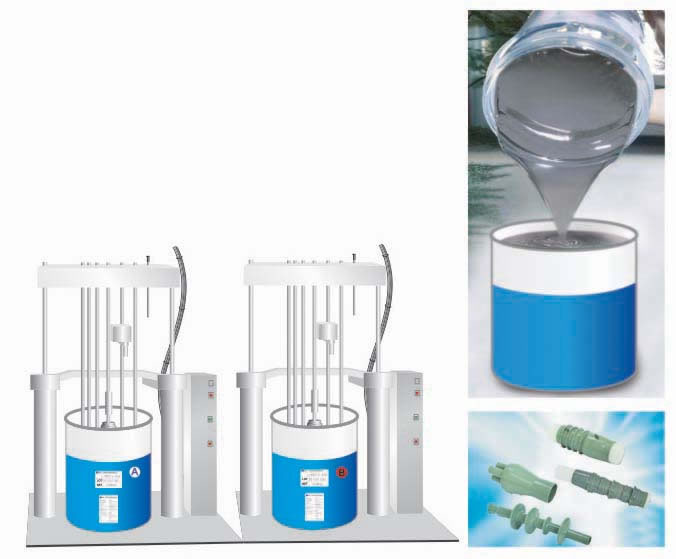

The medium/high voltage resistance LSR is a bi-component platinum catalyzed voltage resistant liquid silicone rubber. The two components of this product, termed A and B, are transparent and gray respectively, and the mixing ratio for A:B should be 1:1. Our medium/high voltage resistance LSR features high extensibility, good proof tracking index, high tear resistance, excellent electric performances, etc. It supports injection molding, fast vulcanization, and can withstand medium to high voltages. This LSR is generally applied to cold shrink cable accessories, medium voltage cable accessories, cable connectors, etc.
Storage
Keep sealed and store in a cool place below 30℃ before usage. It has a shelf life of 12 months.
Usage
Use a static mixer to mix the two components, A and B with a ratio of 1:1. Feed the mixture directly into an injection molding machine. The effective operating time of the mixture is seven days in a room temperature of 23℃. Clean up the pipeline if the injection molding machine is not in use for a long period of time.
Packing
Our medium voltage resistance LSR is packed in a 20kg or 200kg barrel.
Typical Properties
| Uncured Properties | Item | Standard | Unit | LIM2945A/B | LIM1500-30A/B | |
| Viscosity(Y=10.0S-1) | DIN53479 | Pa.s | 1100 | 1200 | ||
| Appearance | A: Transparent B: Grey | |||||
| Solid Content | % | 100 | 100 | |||
| Cured Properties | Specific Gravity | DIN53505 | 1.13 | 1.12 | ||
| Shore A Hardness | DIN53 504 | ºA | 35 | 30 | ||
| Tensile Strength | DIN53 504 | MPa | 9.0 | 8.0 | ||
| Elongation at Break | ASTMD624B | % | 800 | 800 | ||
| Tear Resistance | D412 | N/mm | 28 | 25 | ||
| Tension Set: Keep 200% extension for 48 hrs at 50℃ | D412 | % | ≤3.0 | <3.0 | ||
| Volume Resistivity | GB/T1692-1992 | Ω.m | 1015 | 1015 | ||
| Dielectric Constant (50Hz) | GB/T1691-198 | 2.8 | 2.8 | |||
| Dielectric Strength | GB/T1695–2005 | kV/mm | 26 | 26 | ||
| Tension Set: Keep 300% extension for 15 hrs at 120℃ | GB/T1692-1992 | % | <8.0 | <8.0 | ||
| Dissipation Factor(50z) | GB/T1691-198 | 0.0016 | 0.0016 | |||
Note:
The viscosity is measured by NDJ-79 rotary viscosimeter
Molding condition: High pressure curing for 10 minutes at 140℃
Vulcanization condition: Curing for four hours at 200℃
GB stands for Chinese national standard
The above technical properties are for reference only. For detailed molding conditions, please contact us directly.
We are a China-based medium and high voltage resistance LSR manufacturer. These products come with high quality and low prices. Therefore, they are welcomed by our customers in India, Malaysia, Thailand, Korea, Pakistan, Egypt, Turkey, Nigeria, Poland, Ukraine, the United Kingdom, the United States, Australia, Brazil, Chile, Mexico, Taiwan, and more. Please feel free to contact us, if you are looking for LSR for Insulator.
